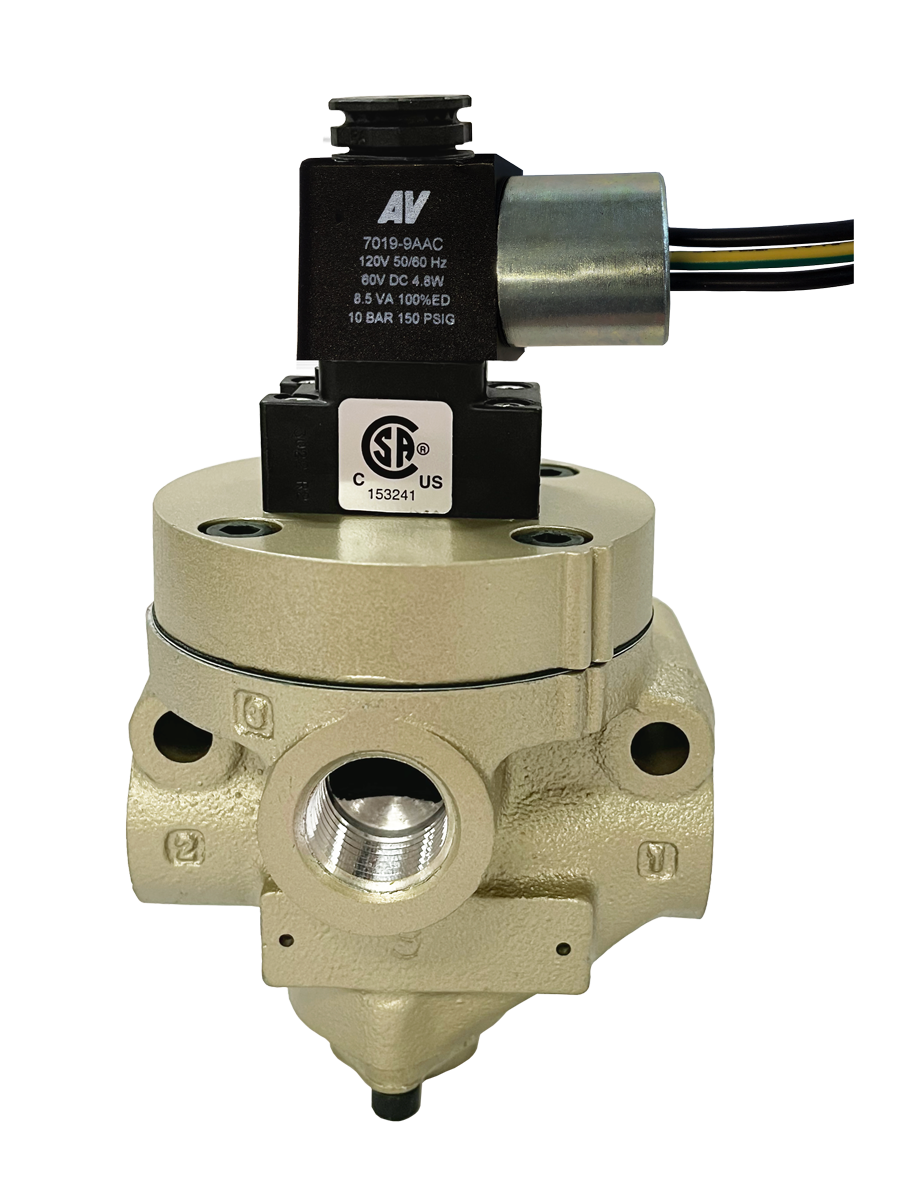

Low/High Temperatures, DIN & M12 Connection [21 Series] 2171B4011W-6

  • Perpendicular Poppet Face Seals Creates High-Flow and Positive Sealing
  • Differential Piston Design Delivers Fast and Consistent Response Times
  • Overwhelming Shifting Forces Provides No-Stick Operation
  • High Velocity Air Flow Across Poppet Seats Allows Self-Cleaning and Strong Dirt Tolerance
  • Superior Internal Guidance System and Self-Compensating Seals Delivers Long-Life

Need Help? No Problem!

Customer Service

+1 (416) 251-7677

Technical Service
+1 (416) 251-7677

Need Help? No Problem!

Customer Service

+1 (416) 251-7677

Technical Service
+1 (416) 251-7677


Product Information

Actuation Electrical
Construction Poppet
Mounting Inline
Manual Override Non-locking
Return Spring
Duty Rating Continous Duty
Fluid Media Filtered Air
Operating Pressure 30 to 150 psig (2 to 10 bar)
Operating Pressure (bar) 2 to 10
Valve Body Material Cast Aluminum
Poppet/Spool Material Aluminum and Stainless Steel
Thread Type NPT
Pilot Type Internal
Ambient Temperature 0 to 180 F (-17 to 82 C)
Default Position Normally Closed
Seal Material Fluorocarbon
Function 2/2
Application High Temperature
Media Temperature 0 to 300 F (-17 to 150 C)
Ports 1-2 Flow 2.6 Cv (2600 l/min)
Voltage 24 VDC
Power Consumption 4.5 Watts
Connection 1/2" Conduit, 30" Leads
Weight 1.9 lb (0.9 kg)
Inlet Pipe Size 1/2"
Outlet Pipe Size 1/2"
Length 3.56 in (90 mm)
Width 3.11 in (79 mm)
Height 5.9 in (150 mm)
