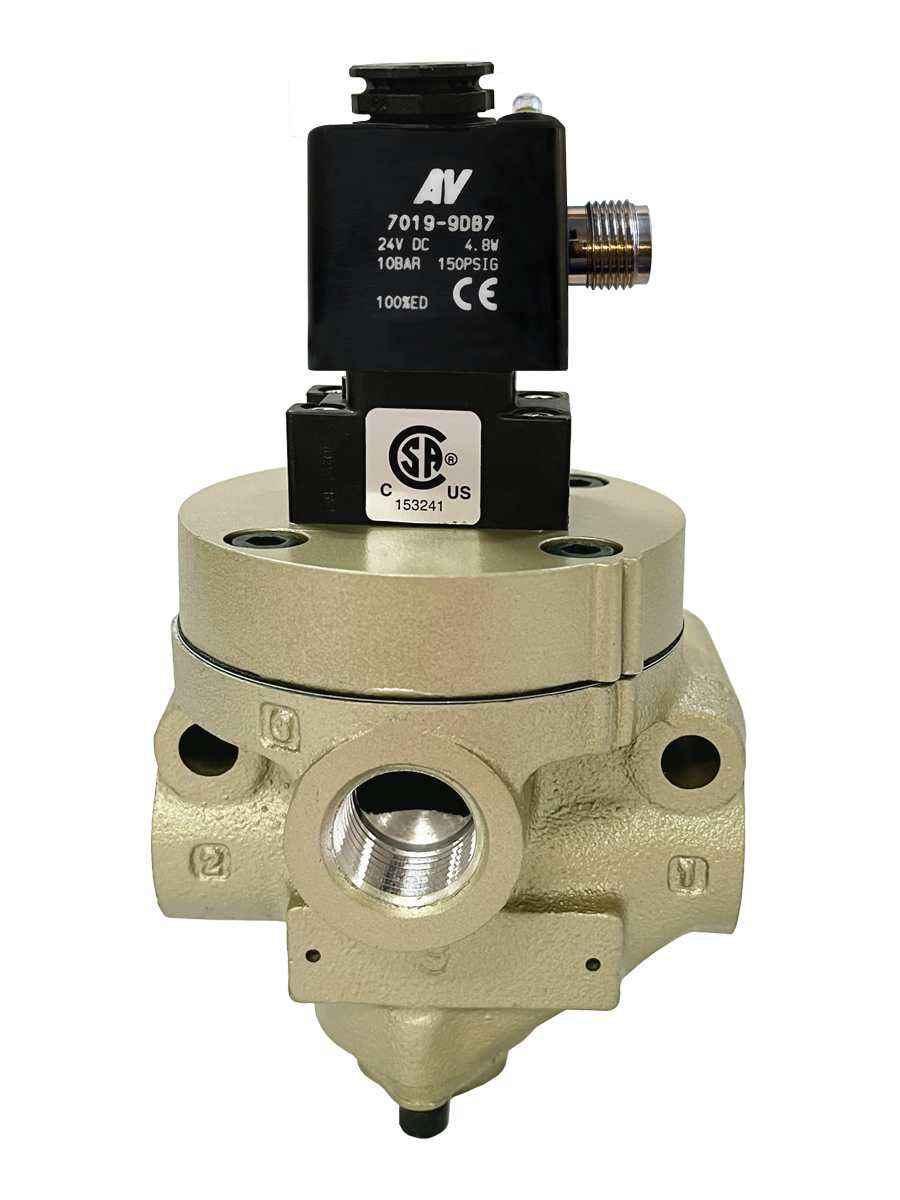

Low/High Temperatures, DIN & M12 Connection [21 Series] 2171B3052H-3

  • Perpendicular Poppet Face Seals Creates High-Flow and Positive Sealing
  • Differential Piston Design Delivers Fast and Consistent Response Times
  • Overwhelming Shifting Forces Provides No-Stick Operation
  • High Velocity Air Flow Across Poppet Seats Allows Self-Cleaning and Strong Dirt Tolerance
  • Superior Internal Guidance System and Self-Compensating Seals Delivers Long-Life

Need Help? No Problem!

Customer Service

+1 (416) 251-7677

Technical Service
+1 (416) 251-7677

Need Help? No Problem!

Customer Service

+1 (416) 251-7677

Technical Service
+1 (416) 251-7677


Product Information

Actuation Electrical
Inlet Pipe Size 3/8"
Construction Poppet
Mounting Inline
Function 2/2
Manual Override Non-locking
Application General
Thread Type NPT
Outlet Pipe Size 3/8"
Ports 1-2 Flow 2.2 Cv (2200 l/min)
Pilot Type External
Return Spring
Voltage 12 VDC
Duty Rating Continous Duty
Power Consumption 4.5 Watts
Connection M12
Ambient Temperature 0 to 122 F (-17 to 50 C)
Media Temperature 40 to 175 F (4 to 80 C)
Fluid Media Filtered Air
Operating Pressure 30 to 150 psig (2 to 10 bar)
Operating Pressure (bar) 2 to 10
Pilot Supply Minimum Must be equal to or greater than inlet pressure
Length 3.56 in (90 mm)
Default Position Normally Closed
Width 3.11 in (79 mm)
Height 5.9 in (150 mm)
Weight 1.9 lb (0.9 kg)
Valve Body Material Cast Aluminum
Poppet/Spool Material Aluminum and Stainless Steel
Seal Material Buna-N
