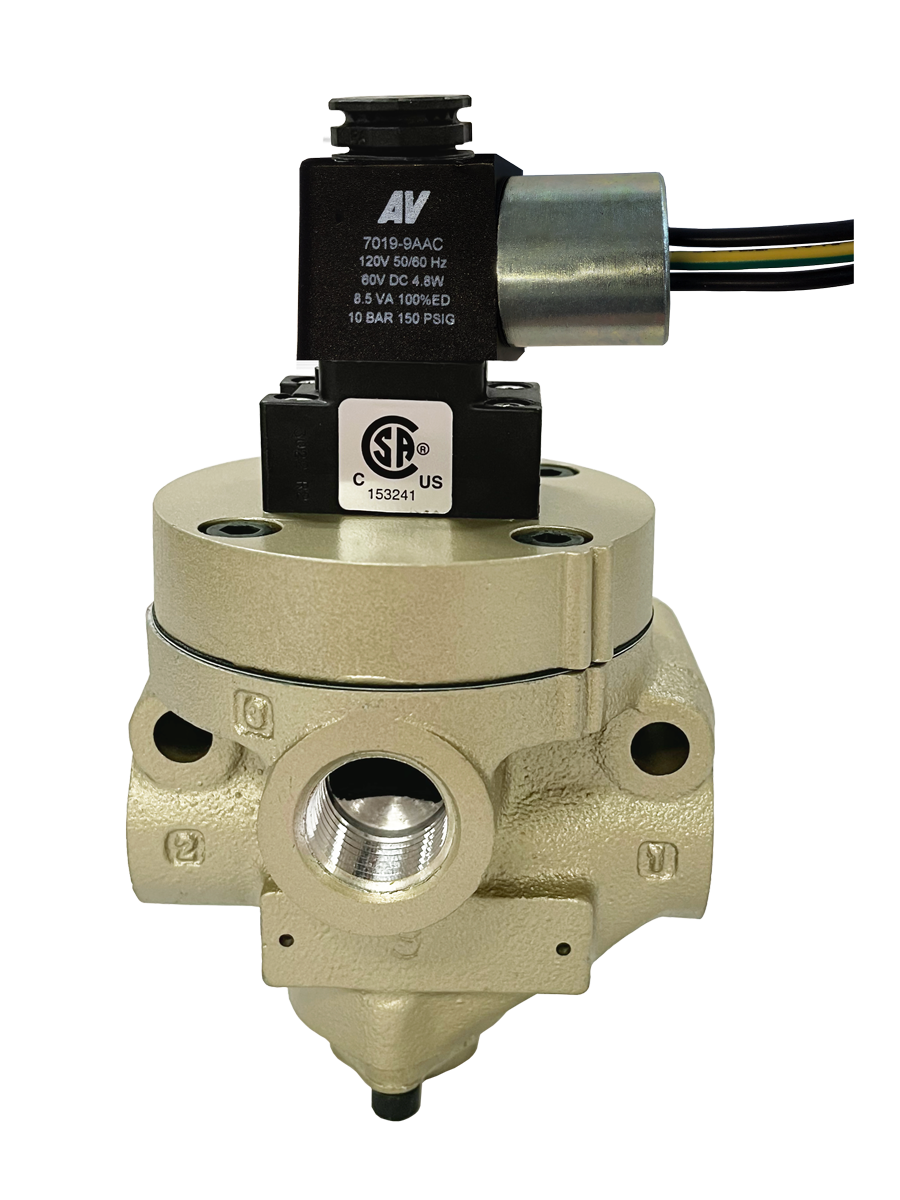

Low/High Temperatures, DIN & M12 Connection [21 Series] 2171B2001Y-4

  • Perpendicular Poppet Face Seals Creates High-Flow and Positive Sealing
  • Differential Piston Design Delivers Fast and Consistent Response Times
  • Overwhelming Shifting Forces Provides No-Stick Operation
  • High Velocity Air Flow Across Poppet Seats Allows Self-Cleaning and Strong Dirt Tolerance
  • Superior Internal Guidance System and Self-Compensating Seals Delivers Long-Life

Need Help? No Problem!

Customer Service

+1 (416) 251-7677

Technical Service
+1 (416) 251-7677

Need Help? No Problem!

Customer Service

+1 (416) 251-7677

Technical Service
+1 (416) 251-7677


Product Information

Actuation Electrical
Construction Poppet
Mounting Inline
Manual Override Non-locking
Ports 1-2 Flow 1.7 Cv (1700 l/min)
Return Spring
Duty Rating Continous Duty
Ambient Temperature 0 to 122 F (-17 to 50 C)
Fluid Media Filtered Air
Operating Pressure 30 to 150 psig (2 to 10 bar)
Operating Pressure (bar) 2 to 10
Valve Body Material Cast Aluminum
Poppet/Spool Material Aluminum and Stainless Steel
Thread Type NPT
Pilot Type Internal
Default Position Normally Closed
Seal Material Fluorocarbon
Function 2/2
Application General
Media Temperature 40 to 175 F (4 to 80 C)
Voltage 240 VAC
Power Consumption 6.8 VA
Connection 1/2" Conduit, 30" Leads
Weight 1.9 lb (0.9 kg)
Inlet Pipe Size 1/4"
Outlet Pipe Size 1/4"
Length 3.56 in (90 mm)
Width 3.11 in (79 mm)
Height 5.9 in (150 mm)
