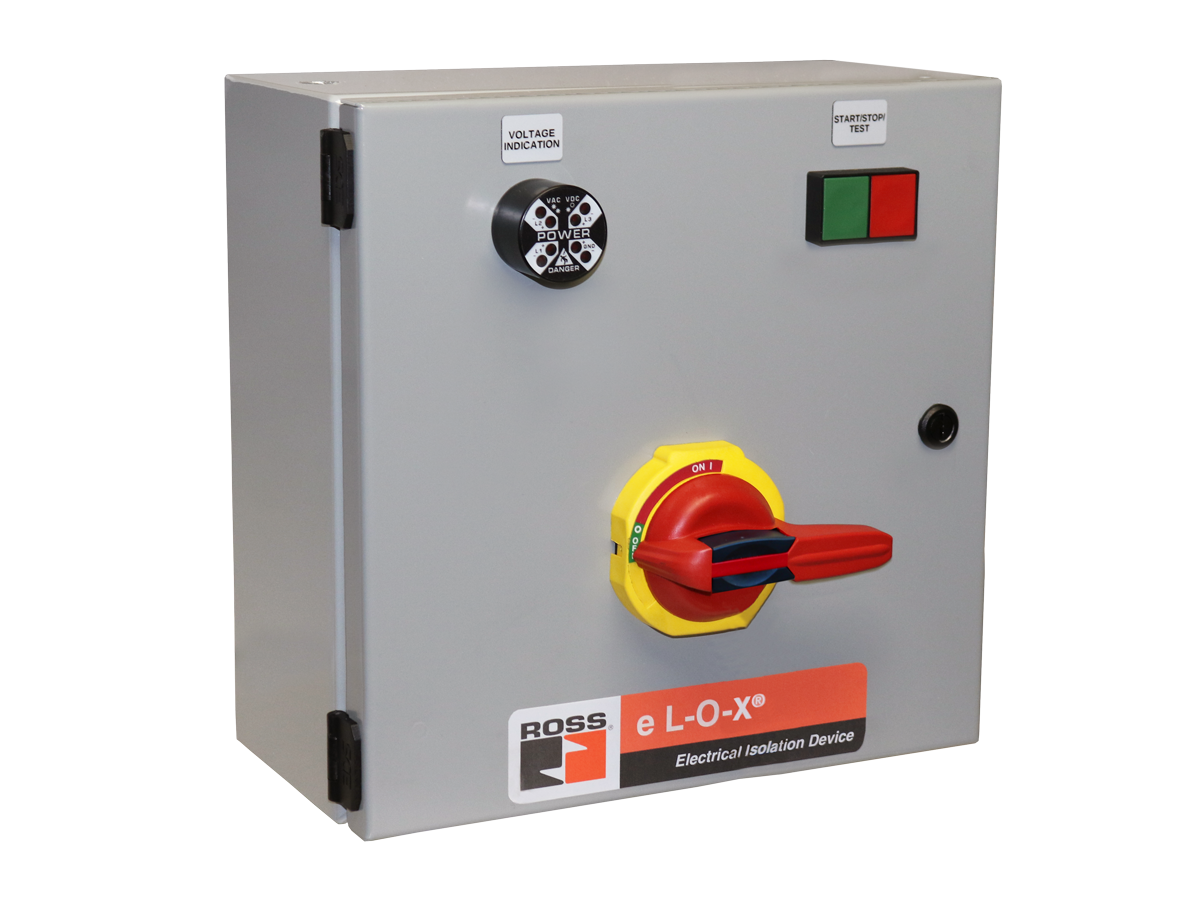

Electrical Isolation Devices E-LOX-060R3A
- Start (Test) / Stop buttons – Can be integrated with machine controls, for Start and Stop functions, and testing for energy release verification
- Lockable disconnect switch (load-rated) – Local disconnect switch, lockable in the OFF position (Lockout/Tagout)
- 3-Phase power indicator – Indicates voltage presence on all phases and, also, if phases are out of balance. Also, as a way to verify energy release after Lockout/Tagout
- 100% factory tested
Need Help? No Problem!
Customer Service
Technical Service
+1 (416) 251-7677
Need Help? No Problem!
Customer Service
Technical Service
+1 (416) 251-7677
Product Information
| Rated Current | 60 Amps |
| Disconnect Switch | Rotary Handle |
| Start (Test) Switch | Green Momentary Pushbutton / Normally Open (NO) |
| Stop Switch | Red Momentary Pushbutton / Normally Closed (NC) |
| Mounting | Wall-mount |
| Electrical Connection | Terminal Block |
| Main Disconnect & Power Indicator Voltage | Up to 600 VAC, 3-Phase |
| Start (Test) / Stop Voltage | 24 V DC at 1.5 amps / 110 V DC at 0.5 amps |
| Enclosure Rating | NEMA Type 12, Dust-tight, IP55 |
+
Electrical Isolation Devices
E-LOX-060R3A
Contact Us for a 3D Model
+
Electrical Isolation Devices
E-LOX-060R3A
Contact ROSS Canada for Ordering Information
+
