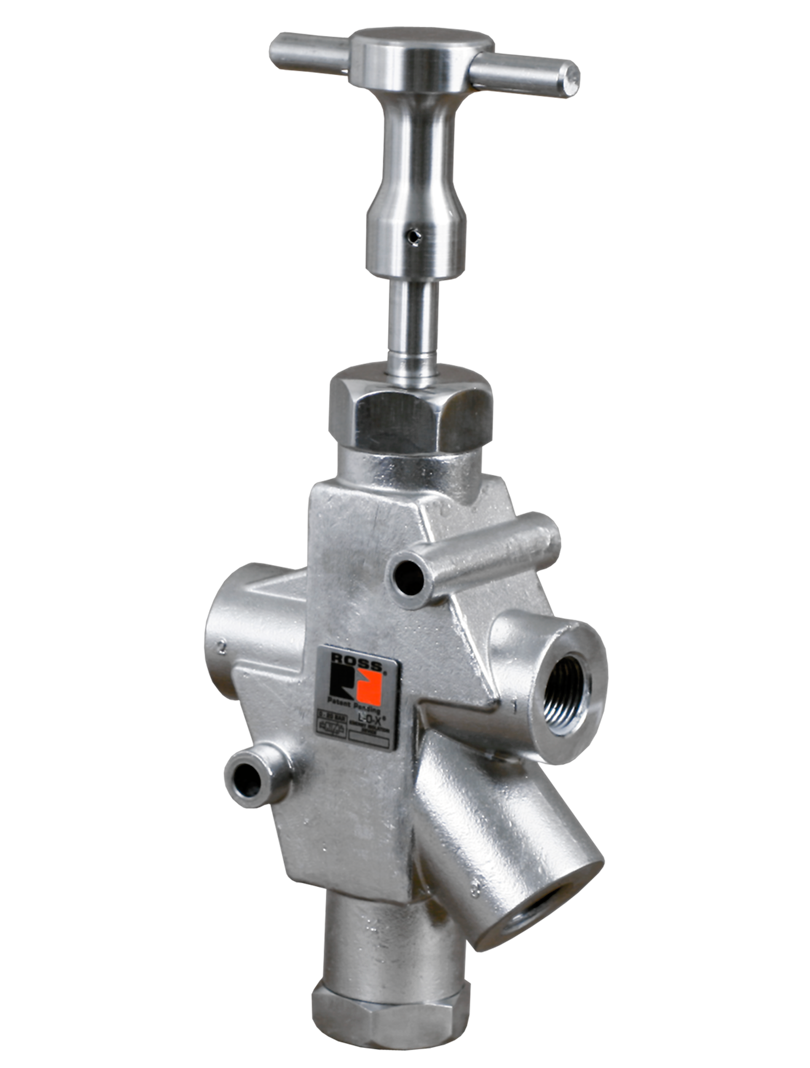

15 Series Lockout L-O-X Valves 1523B2004

  • Easily identifiable with a yellow body and a red handle to control ON/OFF positions (non-Stainless Steel)
  • Full size exhaust ports (equal to or larger than supply) provide rapid exhaust of downstream air and are threaded for silencers or remote exhaust lines
  • Design only allows the valve to be lockable in the OFF (closed) position
  • Fluorocarbon slipper seals for easy shifting, even after long periods of inactivity
  • Includes integrated sensing port for pressure verification with either a visual pop-up indicator or electrical pressure switch

Need Help? No Problem!

Customer Service

+1 (416) 251-7677

Technical Service
+1 (416) 251-7677

Need Help? No Problem!

Customer Service

+1 (416) 251-7677

Technical Service
+1 (416) 251-7677


Product Information

Series 15 Series Stainless Steel
Actuation Manual
Function 3/2
Soft Start Not Included
Thread Type NPT
Inlet Size 1/4"
Outlet Size 1/4"
Exhaust Size 1/4"
Cv (1-2) 2.14
Cv (2-3) 2.08
Length 2.1 in (53.4 mm)
Width 3.54 in (89.9 mm)
Height 8.76 in (222.4 mm)
Weight 3.8 lb (1.7 kg)
Ambient Temperature (Celcius) -1 to 80
Media Temperature (Celsius) -1 to 80
Fluid Media Filtered Air
Operating Pressure 0 to 300 psig (0 to 20.7 bar)
Construction Spool
Mounting In-line
Valve Body Material 316 Stainless Steel
Poppet/Spool Material Stainless Steel
Seal Material Fluorocarbon
Safety Category Category 1
DGUV Certification No
CE Certification No
EAC Declaration Yes
CSA/UL Certification No
PL Rating PL c
Body Size 3/8"
