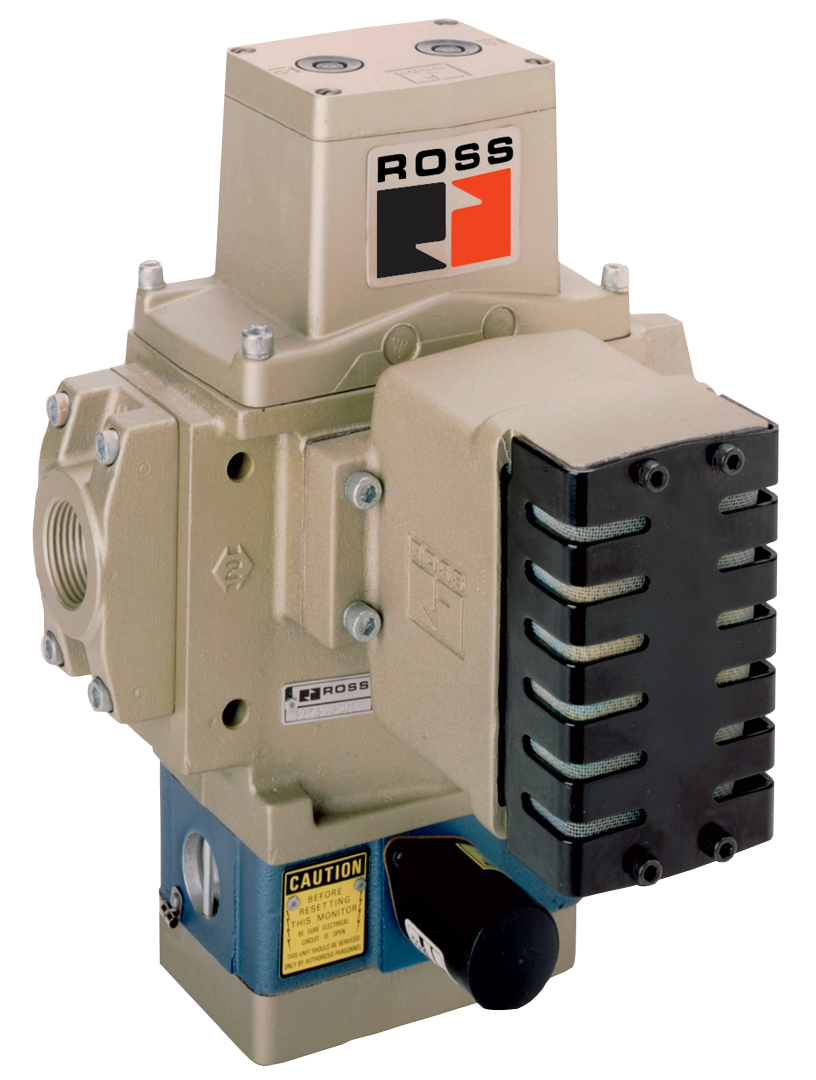

Double Valves with Electro-Pneumatic E-P Monitor 3573A5201Z
- Internal monitoring – requires no additional monitoring circuitry
- Automatic lock-out/inhibit upon detection of a malfunction
- Default to de-energized position upon fault detection
- Dedicated reset function
- No undesired automatic reset upon removal of electrical or pneumatic energy sources
- Built-in non-clogging silencers
Need Help? No Problem!
Customer Service
Technical Service
+1 (416) 251-7677
Need Help? No Problem!
Customer Service
Technical Service
+1 (416) 251-7677
Product Information
| Flange | Without Flange |
| Voltage | 120 VAC |
| Port Thread | NPT |
| Override | With Override |
| Input to Main Solenoid | Single |
| Mounting Type | In-line |
| Inlet Side | Right Side |
| Status Indicator | Included on Terminal Strip |
| Monitor Type | Electro-Pneumatic |
| Reset Type | Solenoid |
| Switches for External Monitoring | N/A |
| Solenoid Connection | Terminal Strip |
| Status Indicator Connection | Terminal Strip |
+
Double Valves with Electro-Pneumatic E-P Monitor
3573A5201Z
Contact Us for a 3D Model
+
Double Valves with Electro-Pneumatic E-P Monitor
3573A5201Z
Contact ROSS Canada for Ordering Information
+
