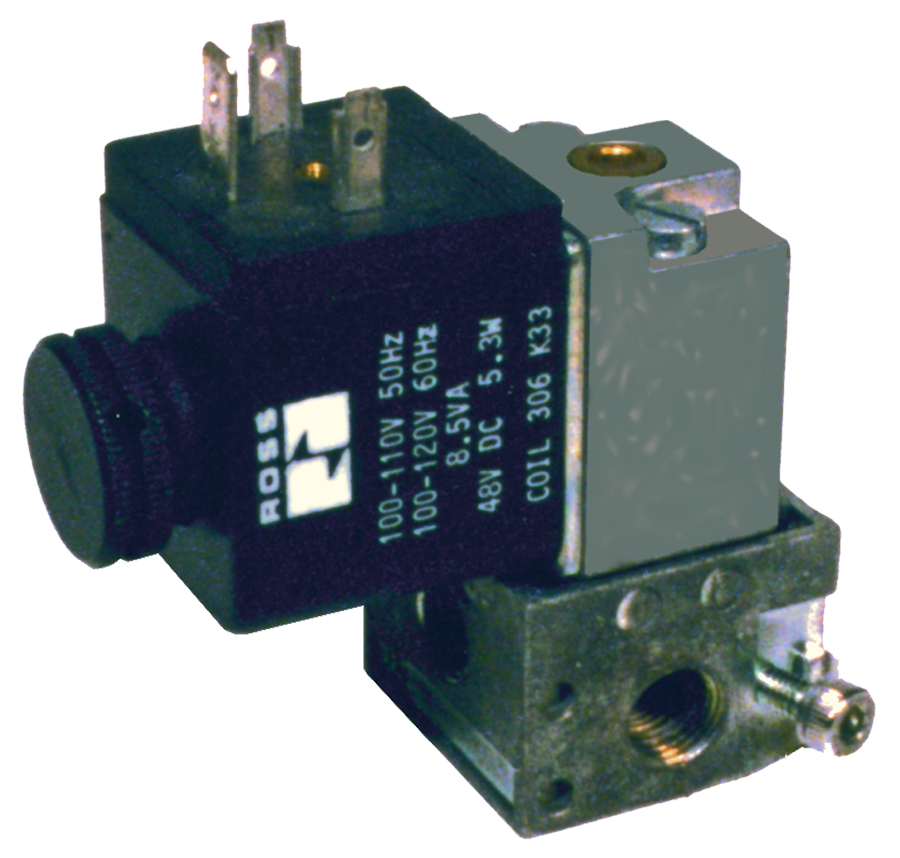

Base Mounted Spool Valves [W14 Series] W1413A1408Y
- 3/2 base mounted valve
- Manual override - flush; metal locking, or non-locking
- Indicator light option
Need Help? No Problem!
Customer Service
Technical Service
+1 (416) 251-7677
Need Help? No Problem!
Customer Service
Technical Service
+1 (416) 251-7677
Product Information
| Valve Type | Directional Control |
| Series | W14 |
| Application | Standard |
| Actuation | Electrical |
| Function | 3/2 Single Direct Solenoid |
| Default Position | Normally Closed |
| Return | Spring |
| Construction | Poppet |
| Mounting | Base Mounted |
| Connection | EN 175301-803 Form A |
| Manual Override | Locking |
| Cv (1-2) | 0.1 |
| Voltage | 230 VAC |
| Duty Rating | Continuous Duty |
| Power Consumption | 6 VA holding on 50 /60 Hz |
| Ambient Temperature | 5 to 120 F (-15 to 50 C) |
| Media Temperature | 5 to 175 F (-15 to 80 C) |
| Fluid Media | Filtered air |
| Operating Pressure | Vacuum to 150 psig (10 bar) |
| Length | 1.2 in (30 mm) |
| Width | 2.40 in (61 mm) |
| Height | 2.5 in (64 mm) |
| Weight | 1.0 lb (0.45 kg) |
| Valve Body Material | Cast Aluminum |
| Seal Material | Buna-N |
+
Base Mounted Spool Valves [W14 Series]
W1413A1408Y
Contact Us for a 3D Model
+
Base Mounted Spool Valves [W14 Series]
W1413A1408Y
Contact ROSS Canada for Ordering Information
+
