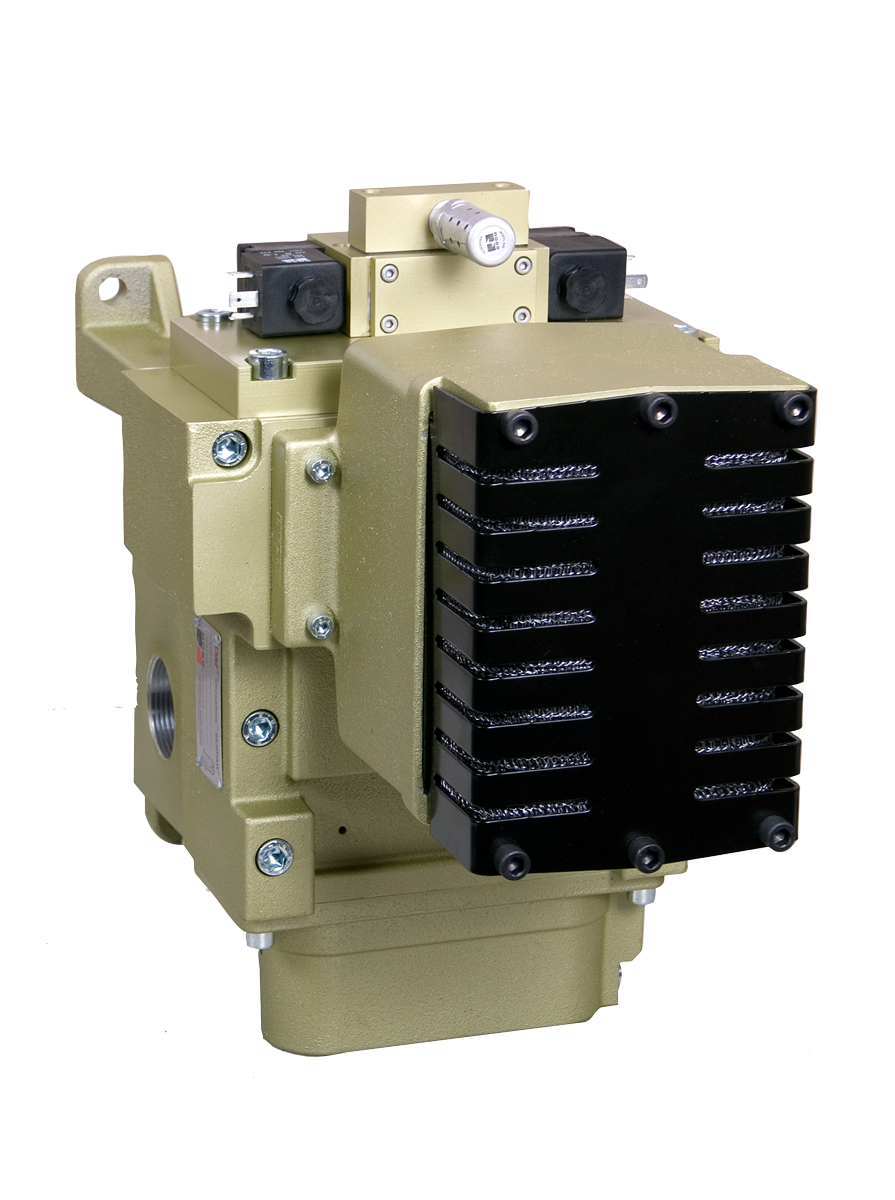

Double Valves for Clutch/Brake Control DM2DDA88A21
- Highly contaminant tolerant poppet construction
- High flow, clog resistant silencers
- Provides redundancy, dynamic monitoring and memory for the mechanical press industry regarding the control of pneumatically controlled clutch and brake applications
- Base mounted
Need Help? No Problem!
Customer Service
Technical Service
+1 (416) 251-7677
Need Help? No Problem!
Customer Service
Technical Service
+1 (416) 251-7677
Product Information
| Port Size (In) | 1-1/2" |
| Port Thread | BSPP |
| Voltage | 24 VDC |
| Status Indicator | Pressure Switch |
| Reset Type | Solenoid |
| Cv (In-Out) | 20.2 |
| Port Size (Out) | 2" |
| Port Size (Exhaust) | Built in Silencer |
| Cv (Exhaust) | 53.7 |
| Mounting Type | Base Mounted |
| Inlet Side | Dual Ported Left/Right |
| Monitor Type | Pneumatic |
| Override | Without Override |
| Input to Main Solenoid | Independent |
| Switches for External Monitoring | N/A |
| Solenoid Connection | DIN |
| Status Indicator Connection | DIN |
+
Double Valves for Clutch/Brake Control
DM2DDA88A21
Contact Us for a 3D Model
+
Double Valves for Clutch/Brake Control
DM2DDA88A21
Contact ROSS Canada for Ordering Information
+
