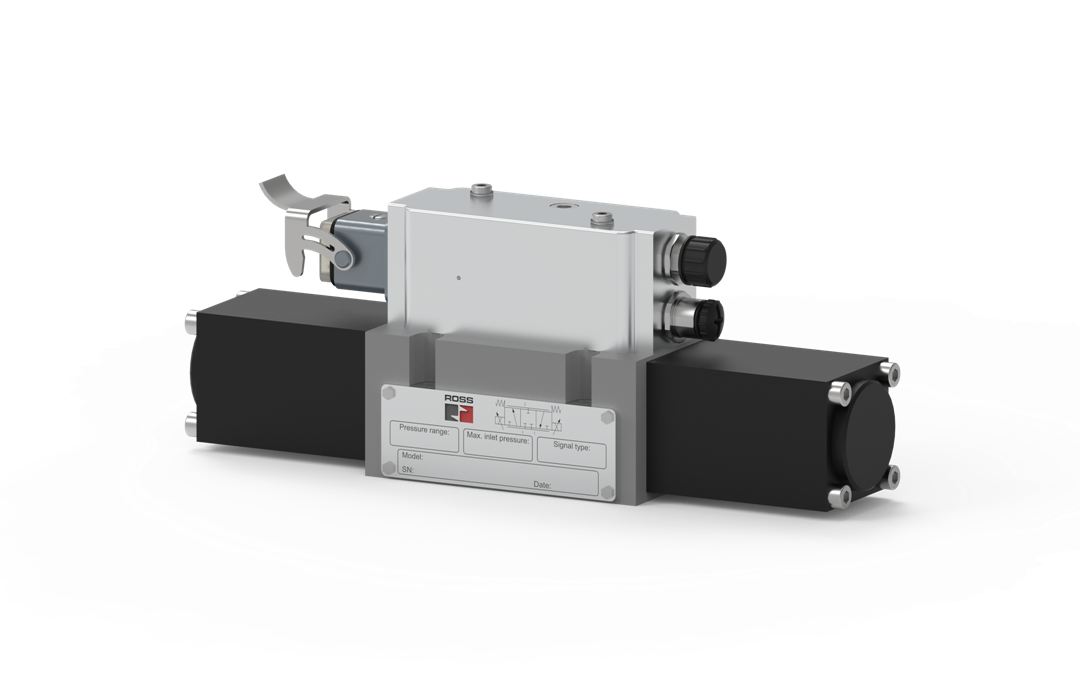

Proportional Pressure Control Valves 120P700003P
Features/Benefits
- Industry 4.0 Features
- Adaptive Disturbance Control
- Predictive Maintenance
- Analysis & Communication Functions
- LED Signaling
- Fast & Precise Regulation
- Dirt-resistant Poppet Design
Need Help? No Problem!
Customer Service
Technical Service
+1 (416) 251-7677
Need Help? No Problem!
Customer Service
Technical Service
+1 (416) 251-7677
Product Information
| Nominal Diameter | ND 12 mm |
| Fluidic Interface | ROSS ND 12 |
| Nominal Flow | 3800 Nl/min |
| Max Inlet Pressure | 5 bar |
| Working Pressure | 0 - 4.0 bar |
| Electrical Connection | Harting Han 8D Connector, male, 8 pins DIN EN 175301-801 |
| Setpoint Signal | 4-20 mA |
| Medium | Compressed air or other neutral gases |
| Voltage | 24 V DC |
| Power Consumption | 37.2 W |
| Ambient Temperature | 0 - 75 °C |
| Protection Class | IP65 |
| Mounting | Base mounted |
| Valve Design | Poppet |
| Valve Function | 3/3-Way |
| Default Position | Center Closed |
| Seal Material | FKM |
| Body Material | Aluminum Barstock |
+
Proportional Pressure Control Valves
120P700003P
Contact Us for a 3D Model
+
Proportional Pressure Control Valves
120P700003P
Contact ROSS Canada for Ordering Information
+
