Hydraulic Lockout Valve Manual L-O-X® Valve
Operating Instructions
Product Catalog
- Actuation - Manual handle bar with 90° rotation, to control ON/OFF positions
- Quick Energy Dump - Full size Tank ports provide rapid bleed of downstream hydraulic energy (T1) and rapid bypass of pump flow (T2).
- Locking Position - Design only allows the valve to be lockable in the OFF (bypassing & bleeding) position
- Nitrile Seals - Buna-N seals for easy shifting, even after long periods of inactivity
- Visible Pressure Indication Option - Includes integrated sensing port on port A for pressure verification with either a gauge (optional), electrical pressure switch (optional) or a transducer (optional)
- Mounting - Inline or surface
- 4-Way Design - Includes two Tank ports that, in the OFF position, are used to dump energy from downstream (T1) and bypass pump flow to the reservoir (T2). If bypassing is not necessary, only use T1.
+

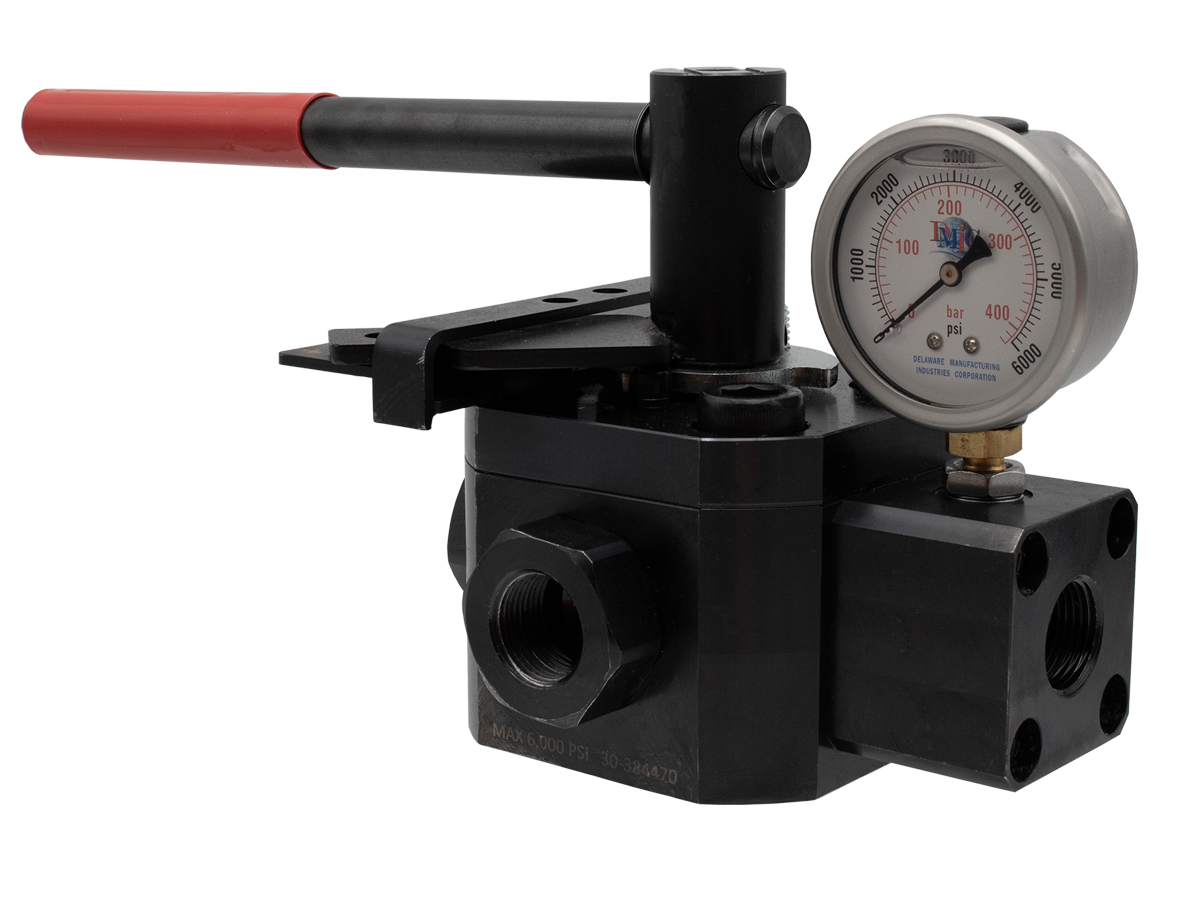

Hydraulic Lockout Valve
