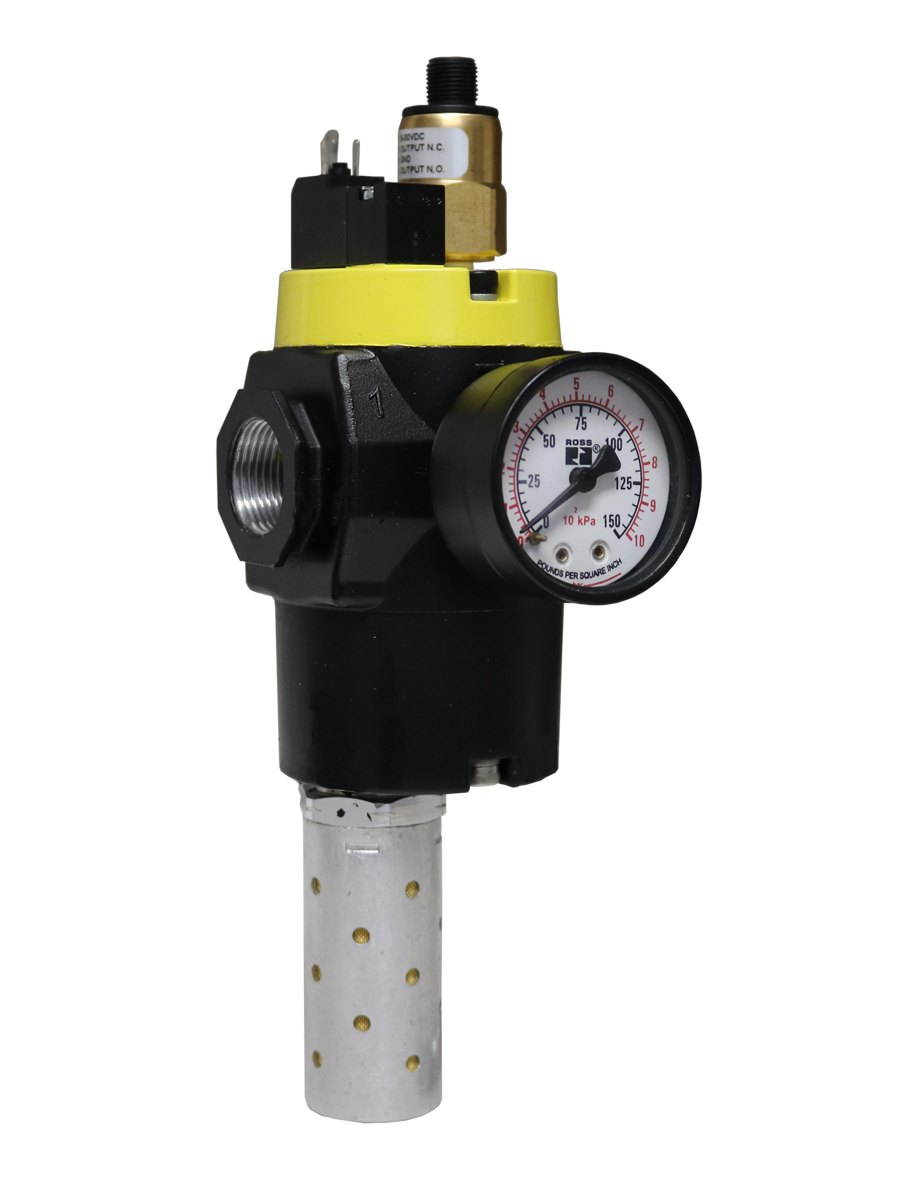

MDC2 Series Single Valve Safety Category. 2 PL c, External Monitoring

  • Can achieve Category 2, PL c, when used with proper safety controls
  • The “fail-to-safe” safety function is ensured as long as the poppet is able to go back into the start position
  • The Cat 2 version (MDC2) of the MDC Series is equipped with a solid state pressure sensor.
  • Monitoring the sensor on each actuation and de-actuation of the MDC2 Series valve provides a diagnostic coverage between 60% < 90%
  • Poppet Design that is dirt tolerant, wear compensating for quick response and high flow capacity
  • PTFE backup piston rings enhances valve endurance enabling operation with or without in-line lubrication
  • On energization, the Soft-Start (EEZ-ON®) allows outlet pressure to increase at a slower rate until it reaches approximately 50% of inlet pressure, at which point the valve will then open fully to finish filling the system at full rate
  • Threaded or modular port connection allows connection to Air Entry System (Lockout Valve, FRLs)
  • Threaded exhaust port for canister silencer or remote exhaust
  • SISTEMA Library available for download
